Premium Wear Rubber Liners for Ball Mill Customized Mining Solutions
Ball Mill Lining & Mill Liners for Mining and Cement Industry
Product Description
Our rubber liners are engineered to enhance grinding efficiency while extending equipment lifespan. The material's elasticity absorbs impact forces, protecting the mill shell from damage. The optimized liner design improves media movement, increasing grinding efficiency. The rubber material offers excellent corrosion resistance, making it ideal for wet grinding environments. Its lightweight construction simplifies installation and reduces maintenance time.
Designed for high-performance grinding systems, our rubber liners deliver exceptional durability and efficiency. The material provides strong resistance to wear and impact, ensuring long service life. The liner design enhances grinding efficiency by optimizing the movement of grinding media. Additionally, the rubber material reduces noise and vibration, creating a safer working environment.
Ball Mill Lining Solutions
Ball mill liners are essential wear-resistant components installed inside grinding mills to protect the mill shell, improve grinding efficiency, reduce maintenance downtime, and optimize grinding media movement. Modern ball mill lining systems are widely used in mining, cement plants, power stations, metallurgy, chemical processing, silica sand grinding, gold ore beneficiation, copper ore processing, and other mineral grinding industries.
Complete Liner Solutions
- Rubber Ball Mill Liners
- Polyurethane Ball Mill Liners
- High Manganese Steel Mill Liners
- Alloy Steel Mill Liners
- Composite / Poly-Met Mill Liners
- SAG Mill Liners
- Rod Mill Liners
- Cement Mill Liners

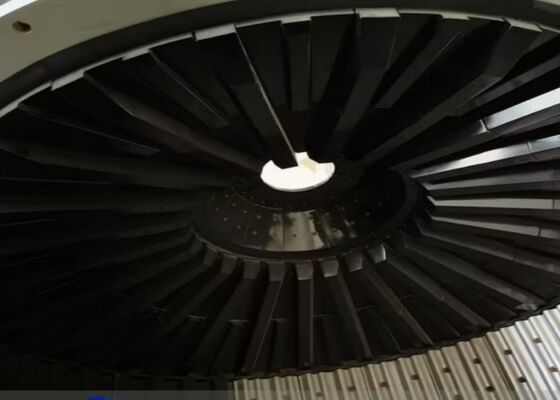

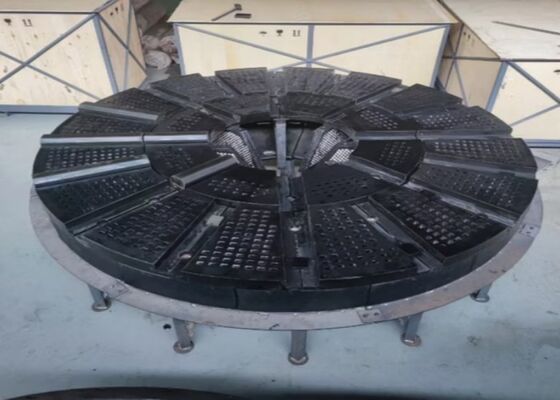

- Grid Plate & End Liners

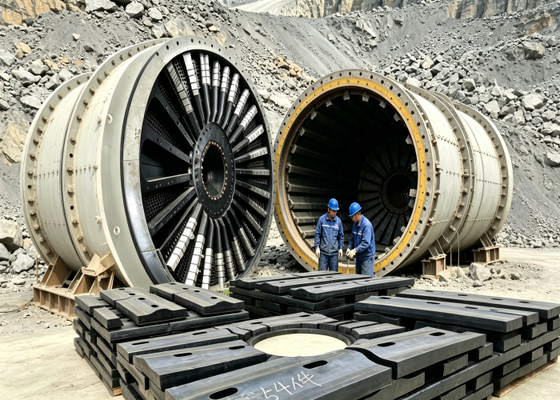

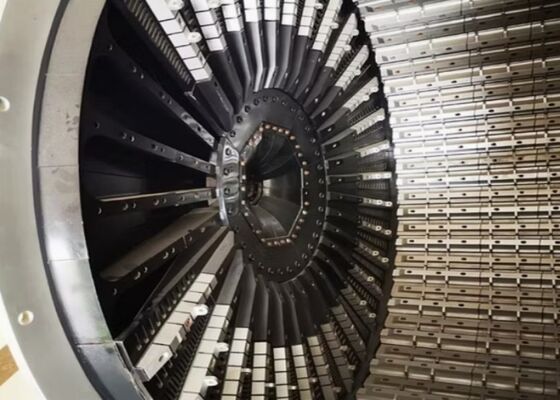

- Shell Liners & Lifter Bars
Our mill liner systems are engineered for high-impact grinding environments and customized according to mill diameter, operating conditions, ore characteristics, and customer drawings.
Main Applications
Mining Industry
- Gold Ore Grinding
- Copper Ore Processing
- Iron Ore Beneficiation
- Lithium Ore Grinding
- Lead-Zinc Processing
- Nickel Ore Grinding
- Molybdenum Ore Processing
- Phosphate & Rare Earth Mining
Cement Industry
- Raw Material Grinding
- Clinker Grinding
- Cement Finish Mills
Industrial Minerals
- Quartz Sand
- Silica Sand
- Limestone
- Feldspar
- Kaolin
- Calcium Carbonate
Power & Chemical Industry
- Coal Grinding Mills
- Desulfurization Systems
- Chemical Powder Processing
Advantages of HUATAO Ball Mill Liners
Excellent Wear Resistance
High manganese steel, alloy steel, rubber, and polyurethane materials provide superior abrasion resistance and extended service life under harsh grinding conditions.
Improved Grinding Efficiency
Optimized liner profiles help lift grinding media effectively, improving impact force and grinding performance.
Lower Energy Consumption
Rubber and composite liners reduce mill weight and improve energy efficiency, helping lower operational cost.
Reduced Noise Level
Rubber liners absorb impact energy and significantly reduce operating noise compared with steel liners.
Customized Design
Available according to OEM drawings, mill working conditions, ore characteristics, wet or dry grinding process, and SAG/AG/Ball Mill configurations.
Easy Installation & Maintenance
Modular liner systems simplify installation and reduce maintenance downtime.
Corrosion Resistance
Rubber and polyurethane liners provide excellent resistance against acidic slurry and wet grinding environments.
Available Liner Types
| Liner Type |
Material |
Features |
Suitable Application |
| High Manganese Steel Liner |
Mn13Cr2 / Mn18Cr2 |
High impact resistance |
Coarse grinding |
| Alloy Steel Liner |
Cr-Mo Alloy Steel |
Long wear life |
Heavy-duty mills |
| Rubber Liner |
Natural Rubber |
Low noise & lightweight |
Wet grinding |
| Polyurethane Liner |
PU Elastomer |
Corrosion & wear resistant |
Fine particle grinding |
| Composite Liner |
Steel + Rubber |
Combined strength & elasticity |
Large grinding mills |
| Wave Liner |
Cast Steel / Rubber |
Better media lifting |
Primary grinding |
| Grid Plate Liner |
Alloy Steel |
Improved discharge efficiency |
Overflow mills |
| Shell Liner |
Customized |
Protects mill shell |
Ball/SAG mills |
Technical Specifications
| Item |
Specification |
| Material |
High Manganese Steel / Cr-Mo Alloy / Rubber / Polyurethane |
| Hardness |
HRC 45-65 / Shore A 60-90 |
| Processing Type |
Casting / Hot Vulcanization / CNC Machining |
| Mill Diameter |
Customized |
| Thickness |
20-350 mm |
| Tensile Strength |
≥16 MPa (Rubber) |
| Elongation |
≥350% |
| Impact Resistance |
Excellent |
| Application |
Ball Mill / SAG Mill / AG Mill / Rod Mill |
| Installation |
Bolt Type / Screw Type / Modular |
| OEM Service |
Available |
| Certification |
ISO9001 |
Material Selection Recommendation
| Grinding Condition |
Recommended Material |
| High Impact Ore |
High Manganese Steel |
| Fine Grinding |
Rubber Liner |
| Wet Grinding |
Rubber / Polyurethane |
| Large SAG Mill |
Composite Liner |
| Corrosive Slurry |
Polyurethane Liner |
| Energy Saving Requirement |
Rubber Composite Liner |
Production Process
- Raw Material Inspection
- Mold Design & Casting
- Heat Treatment
- Precision Machining
- Vulcanization (Rubber Liner)
- Quality Testing
- Trial Assembly
- Packaging & Delivery
Quality Control
HUATAO strictly controls chemical composition analysis, hardness testing, ultrasonic flaw detection, dimensional inspection, wear resistance testing, and impact performance testing. All products are inspected before shipment to ensure stable quality and long service life.

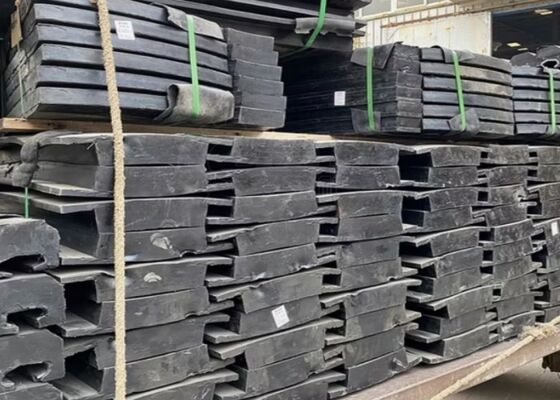

Packaging & Delivery
Packaging
- Wooden Crates
- Steel Pallets
- Export Standard Seaworthy Packing
Delivery Time
- Standard Products: 7-15 Days
- Customized Liners: 20-35 Days
Shipping Method
- Sea Freight
- Air Freight
- Railway Transportation
Request for Quotation
To provide an accurate quotation, please kindly send:
- Mill Type (Ball Mill / SAG Mill / Rod Mill)
- Mill Diameter & Length
- Liner Material Requirement
- Installation Drawing or OEM Part Number
- Ore Type & Working Condition
- Wet Grinding or Dry Grinding
- Expected Service Life
- Quantity Required
Why Choose HUATAO
- Rich experience in mining wear parts export
- OEM & customized solutions available
- Professional technical support
- Strict quality control system
- Competitive factory direct price
- Fast delivery & global shipment
- Long-term cooperation with mining companies worldwide
