उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| नाम: | ब्लेड शार्पनर | कोर घटक: | मोटर, असर, पीएलसी, गियरबॉक्स |
|---|---|---|---|
| वोल्टेज: | 220V/380V 50Hz | आवेदन: | विभिन्न प्रकार के काटने के उपकरण |
| पीसने की चौड़ाई: | 180 मिमी -290 मिमी | पीस लंबाई: | 1500 मिमी -9000 मिमी |
| प्रमुखता देना: | woodworking knife grinder machine,industrial blade sharpening machine,grinding machine for woodworking knives |
||

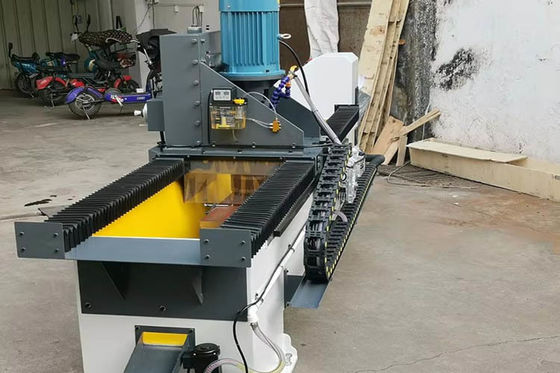

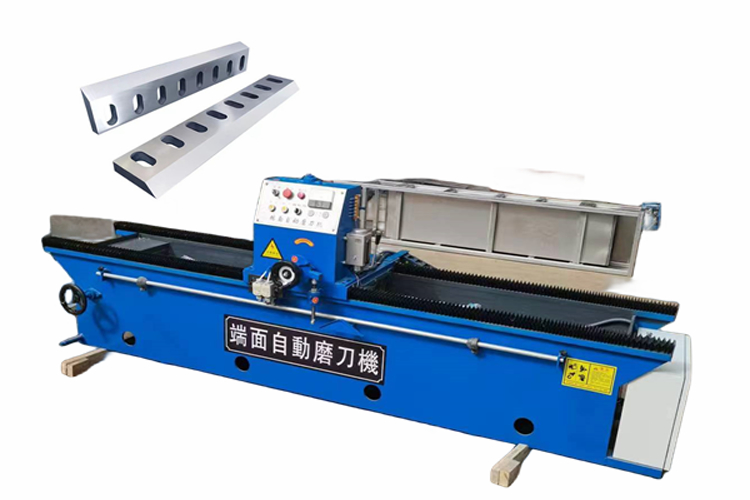

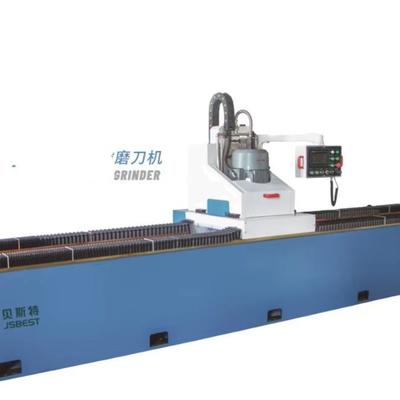

Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Sharpener Specification:
The knife grinder for crusher blade is a precision machine designed to sharpen and maintain the blades used in veneer peeling. This machine is equipped with advanced features such as a high-precision grinding wheel, automatic knife feed, and precise angle adjustment system to ensure consistent and accurate sharpening results.
Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:
| Name and Model | MZ6115 | MZ7115 |
| Key Words | Blade Sharpener | |
| Maximum grinding length | 1600mm | 1600mm |
| Length * width | 1550*180(200)mm | 1550*180(200)mm |
| Adjustable angle of operating cutter table | ±90° | ±90° |
| Power of grinding head motor | 3KW | 5.5kw |
| Gross power | 5.5KW | 6kw |
| Reciprocating speed of grinding speed | 14m/min | 17m/min |
| External dimension | 3000*1000*1200mm | 3850*1300*1300mm |
| Total weight | 1200kg | 1800kg |
| Grinding head drive mode | Belt transimission | Belt transimission |
Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...
Grinding Machine Feature:
1. PLC control system can be used to set the number of automatic cycles, the number of automatic feed times, the amount of feed.
2. Adopts national standard double steel plate and lining stiffener, stable, free from vibration.
3. Water tank for knife sharpening to avoid sparks and to cool down the machine, helping to prolong its service life.
4. The grinding head adopts hoisting device, which makes the replacement of the grinding wheel more convenient and rapid, and improves the operational efficiency.
5. The machine tool adopts square linear guide rail.
6. Adopts Taiwan Shangyin Precision Linear Guide Rail
